MALiS - Multi Adaptive Lifting System
MALiS - High-precision synchronous process in Z
MALiS is your high-precision Z-positioning solution for coarse adjustment with repositioning and parallelism in the micron range. The system is used in life science, 3D printing, materials testing, photonics, and research and development.
Freely configure your application and combine MALiS with various XY positioning systems, grid plates, or with customized components - developed according to your requirements.

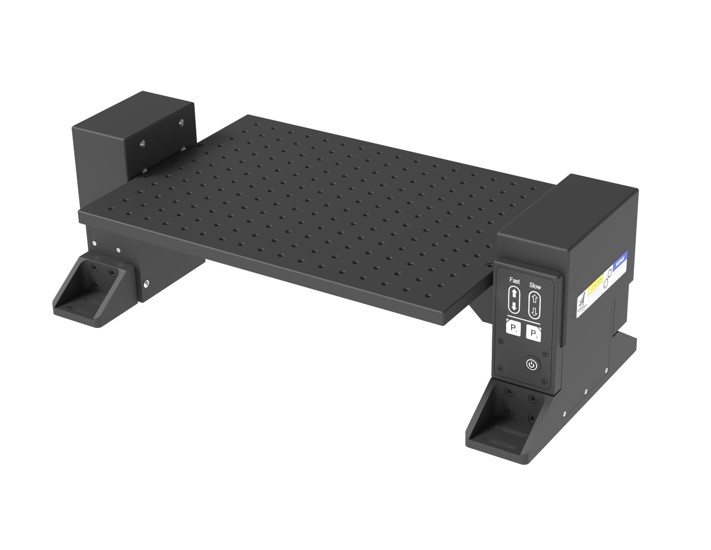

MALiS - Order No.: 00-1547-0405-0000 | Grid top - Order No.: 00-1547-0405-0220

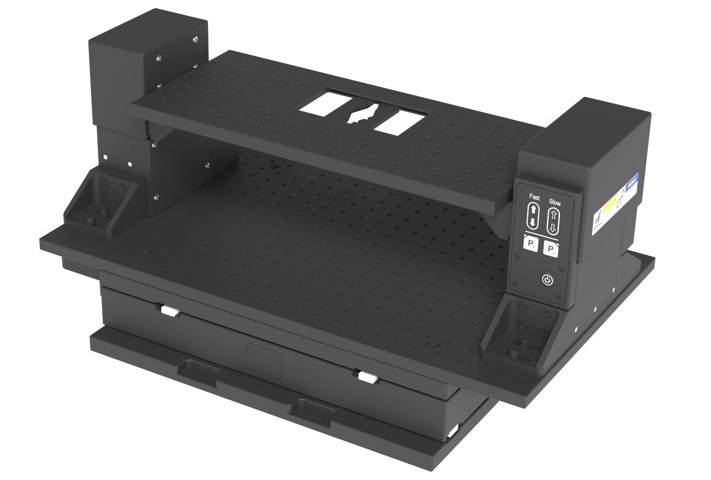

MALiS - Order No.: 00-1547-0405-0000 | XY-Stage115 x 85 - Order No.: 00-4034-0501-0000 | Grid top with sample handling 160 x 116 - Order No.: 00-1547-0405-0210

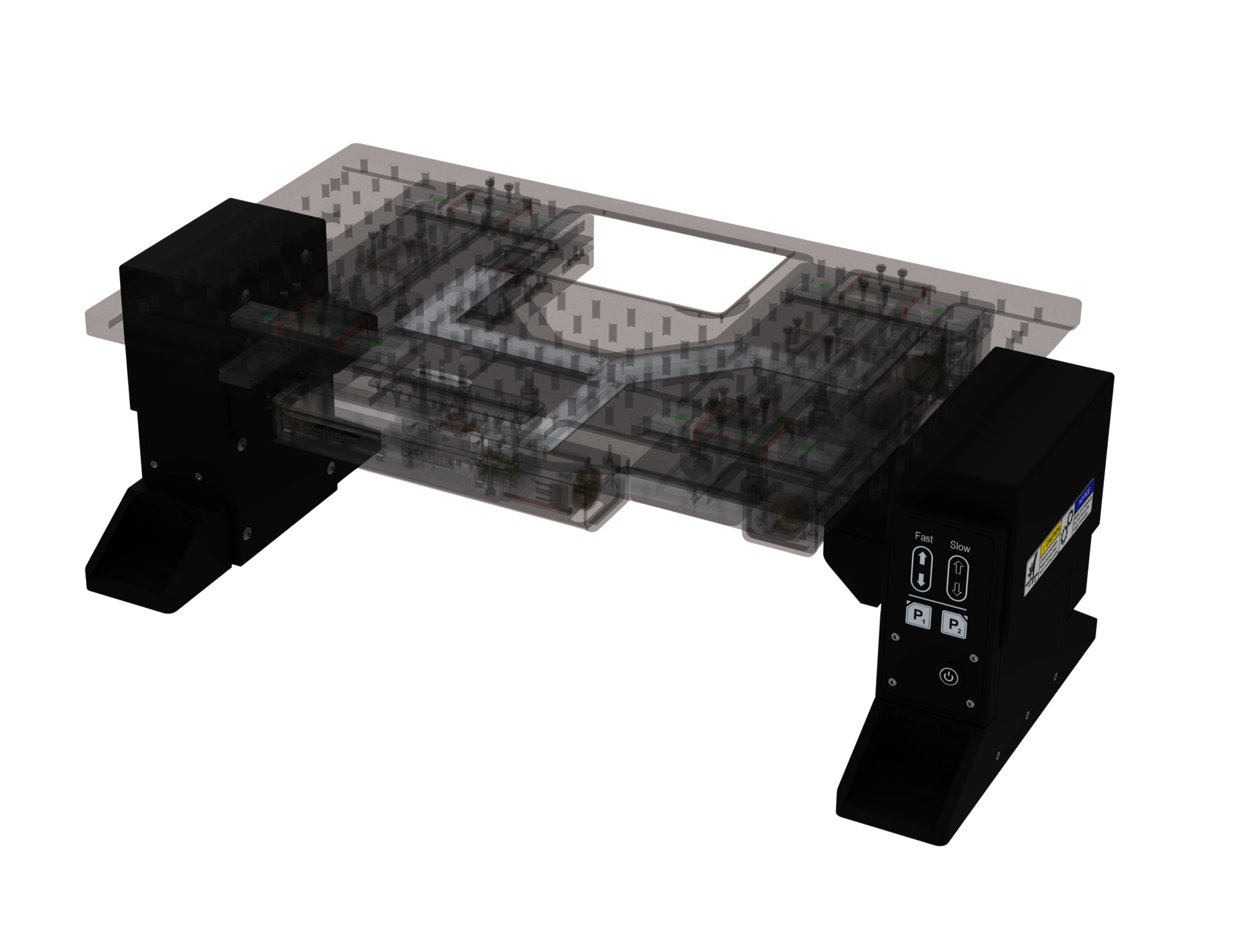

MALiS - Order No.: 00-1547-0405-0000 | customizable top
Controlled Axes
- synchronous Z-axes
- configurable with: XY positioning systems, grid plates, customized components
Specifications
- Resolution: 0.05 µm
- Repeatability: < 1 µm
- Travel speed: max. 14 mm/s
- Load capacity: 30 kg
Features
- for customized platforms, prepared for mounting on optical breadboards
- integrated optical measuring system
- Memory function: individually configurable presets for reaching the Z-position with a single button press
- Control via joystick or control panel

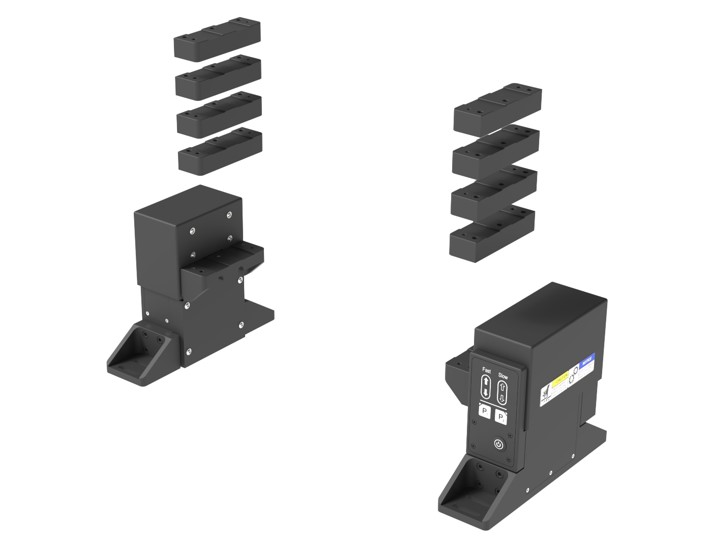

MALiS - Order No.: 00-1547-0405-0000 | Spacer 25 mm - Order No.: 00-1547- 0405-0230
